HEN

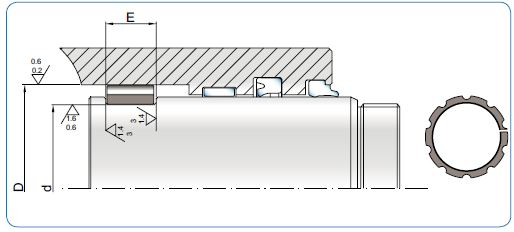

The HEN Wear Rings are designed specifically for plunger cylinders, in substitution to the traditional bronze bushings.

It has a double function in keeping the rod in guide on the bore and acting as a limit switch in guaranteeing the passage of oil by the large grooves on the external diameter.

The standard material is Polyacetal Resin reinforced with fibreglass. (R0). For temperature in excess of 115°C the material is a reinforced polyamide resin. (R1).

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
