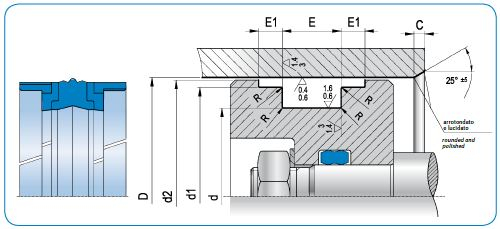

Diagram - KDSI (Same as KDSB - Imperial)
The KDSI is the same as the KDSB range, but is available in imperial sizes.

It is made of a central unit in Nitrile Rubber working as a seal, two side supports acting as antiextrusion rings and two external guide rings, keeping the piston aligned in the cylinder.

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
