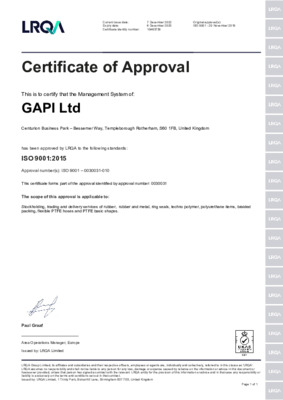

	UK ISO 9001:2015 Certificate
	UK ISO 14001:2015 Certificate

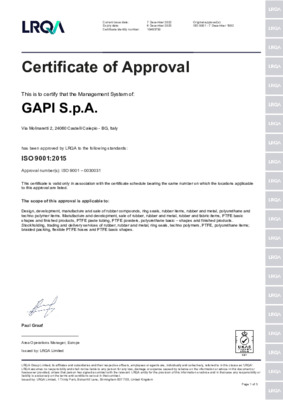

	Italy ISO Certificate

Miscellaneous

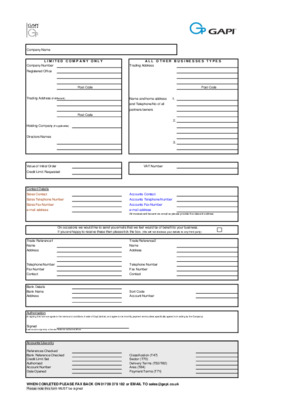

	New Account Form

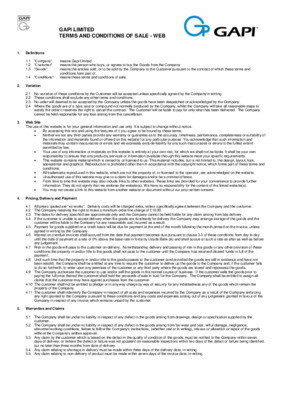

	Terms & Conditions of Sale

Catalogues

	O Ring
	Artic Seals
	Oil Seals

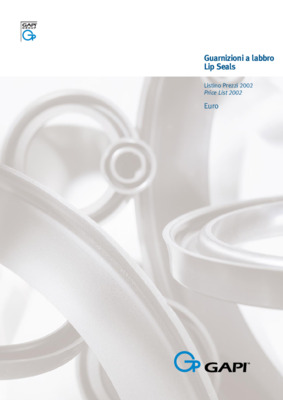

	Lip Seals
	O Ring - Polyurethane & Anti-Rolling®

Compound Data Sheets

With our own compounding plant we can provide in excess of 260 different compounds. You can be sure that we can supply a material that is suitable for your requirements. Below registered users can download our more popular compounds, but if there is something more specific that you need please give us a call and talk to one of our engineers.

Compound	Gapi Ref	Indicative Temp Range	Shore Hardness*	View Data Sheet
Nitrile 70	K6	-30°C to +100°C	70
FPM75	G6	-15°C to +200°C	75
Nitrile 90	K0	-20°C to +100°C	90
Nitrile 60	K4	-30°C to +100°C	60
Nitrile 80	K8	-30°C to +100°C	80
Nitrile 70 Low Temp	X6	-55°C to +100°C	70
FPM75 Brown	G6	-15°C to +200°C	75
FPM75 Green	G6	-15°C to +200°C	75
FPM90	G0	-10°C to +200°C	90
Silicone 70	F6	-60°C to +200°C	70
EPDM FDA Peroxide Cured Grey	CG	-55°C to +150°C (peak +170°C)	70
EPDM WRAS Approved	CJ	-50°C to +120°C	70
EPDM Peroxide Cured Black	C6	-60°C to +150°C (peak +170°C)	70
EPDM Sulphur Cured Black	D6	-50°C to +110°C (peak +130°C)	70
NBR90 Back Up Ring	K0	-40°C to +100°C	90
FEP + FPM	GF	+204°C to -60°C	75
FEP + SIL	FF	+220°C to -60°C	70
PTFE O Rings	T1	-50°C to +260°C

O Ring Cord NBR70	W6	-30°C to +110°C	70
O Ring Cord FPM70	G6	-10°C to +230°C	70

Lip Seal NBR75	Y7	+120°C to -20°C (peak +140°C)	75
Lip Seals NBR90	Y0	+120°C to -15°C (peak +140°C)	90
Lip Seals NBR85	Y9	+120°C to -15°C (peak +140°C)	85
Lip Seals FPM75	G7	+200°C to -10°C (peak +250°C)	75

Oil Seals NBR75	K7	+120°C to -25°C (peak +140°C)	75
Oil Seals FPM75	G7	+200°C to -10°C (peak +250°C)	75

Artic Seals		see catalogue for full range of materials

Bonded Seals	Y0/G7/C9			please call
Macma	P5		95
Macma	P0		90
Bearing Tape - Brown	TM
Bearing Tape - Green	TV

*Shore Hardness +/-5°

High Performance Elastomer Compounds

Compound	Gapi Ref	Indicative Temp Range	Shore Hardness
FFKM
GPlast 260B Universal Black	UD	+260°C to -23°C	75
GPlast 260B-GP Universal Black	UQ	+260°C to -17°C	75
GPlast 260W Universal White	UP	+260°C to -22°C	80
GPlast 260W-GP Universal White	Ux	+260°C to -18°C	75
GPlast 260G Universal Green	Ux	+260°C to -22°C	75
GPlast 300B High Temp Hot Water Steam	UK	+300°C to -18°C	80
GPlast 300W Ultra Pure White	UG	+300°C to -18°C	70
GPlast 330B Ultra High Temperature	UL	+330°C to -16°C	80
GPlast 640W USP White	UU	+230°C to -17°C	75
GPlast 641W White	UR	+260°C to -16°C	80
GPlast 639B Black	U1	+230°C to -18°C	80
GPlast 642B Black	US	+260°C to -18°C	75
GPlast 643 Class USP VI 3A Sanitary White	UV	+260°C to -17°C	75
GPlast 643 HT Class VI USP	UW	+300°C to -18°C	70
GPlast 240B LT Universal Low Temperature	UC	+240°C to -27°C	75
GPlast LT-45 Low Temperature	UN	+240°C to -45°C	75
GPlast T141 Green Low Hardness	UB	+260°C to -15°C	65

FFKM Oil and Gas AED Resistant
GPlast 230AED	U2	+230°C to -24°C	90
GPlast T128 NORSOK M-710	UM	+230°C to -19°C	90
GPlast 300B AED	UF	+300°C to -18°C	90
GPlast 316B AED Resistant	UE	+316°C to -16°C	90
GPlast LT-45 AED Resistant	UO	+240°C to -45°C	90
FKM
F219 Viton^® GF	VH	+200°C to -15°C	75
F199 Viton^® GFLT	VJ	+200°C to -25°C	75
F221 Viton^® GLT	GL	+200°C to -30°C	75
F207 FKM Ultra Low Temp	VM	+200°C to -40°C	75
F195 - FKM Ultra Pure White	VK	+200°C to -15°C	75
F348 - FKM FDA White	VV	+200°C to -15°C	75
F366 - FKM FDA Black	VW	+200°C to -15°C	70
F243 Viton^® Extreme (ETP Viton^®)	VN	+200°C to -10°C peak @ 250°C	75
F263 - Viton^® B	VB	+200°C to -15°C	75
F226 NORSOK M-710 AED Approved	VF	+200°C to -33°C	90
F227 NORSOK M-710 AED Approved	VE	+200°C to -44°C	90
F225 FKM Ultra Low Temp AED Resistant	VG	+200°C to -54°C	90
F235 - FKM High Pressure AED Resistant	VL	+200°C to -15°C	90

EPDM
WRAS Approved	CJ	+120°C to -50°C	70
EPDM 30H - Nuclear Industry	CO	+150°C to -20°C	72
HNBR
HN109	M8	+150°C to -20°C	80
HN114 NORSOK M-710 AED Approved	MC	+150°C to -20°C	90
FLUOROSILICONE
S311	N6	+200°C to -50°C	75

AFLAS
F157 AFLAS 75	LK	+200°C to -5°C	75
F161 AFLAS 80	LH	+200°C to -5°C	80
F229 AFLAS 90 AED Approved	LN	+200°C to -5°C	90
NITRILE
C278 BS2751 BA60 Specification	ZM	+100°C to -25°C	60
C292 BS2751 BA70 Specification	ZO	+100°C to -25°C	70
C291 BS2751 BA80 Specification	ZZ	+100°C to -25°C	80
C311 Nitrile Metal Detectable	xx	+125°C to -25°C	70

Statements

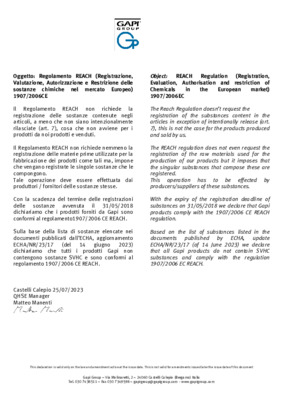

	REACH - SVHC Statement

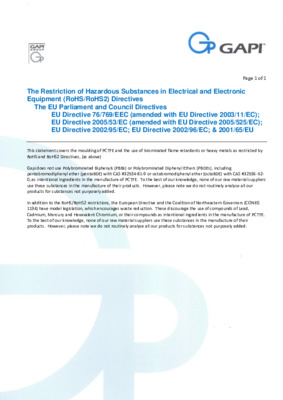

	RoHS Statement

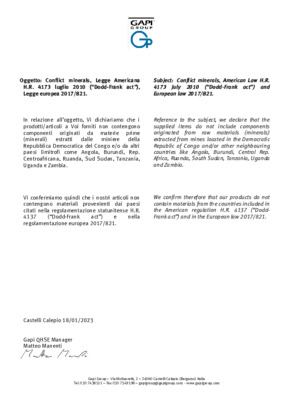

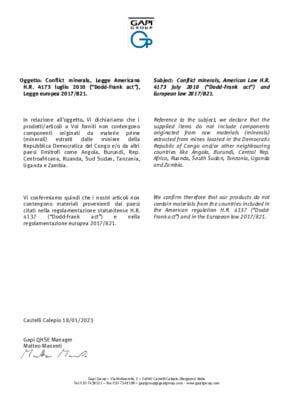

	Conflict Minerals Statement

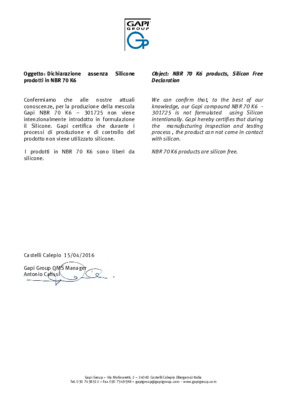

	Silicone Free Statement NBR70 (K6)
	Silicone Free Statement FPM75 (G6)

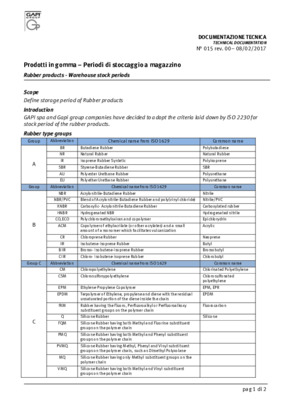

	ISO 2230-2002 Rubber Storage

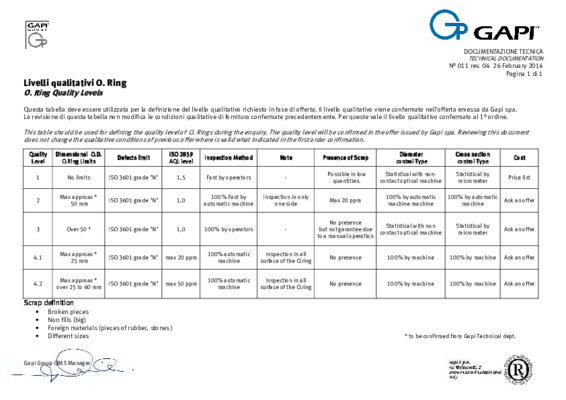

ORing Quality Levels

	AQL Inspection Table
	ORing Inspection Levels

ORing Tolerances

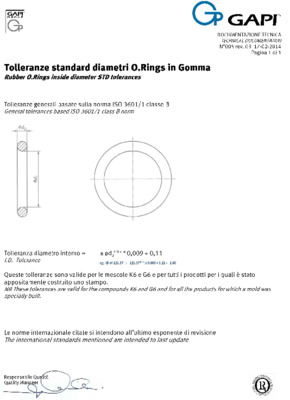

	ORing ID Tolerances ISO 3601
	ORing CS Tolerances

Chemical Resistance

Elastomer Chemical Resistance Table

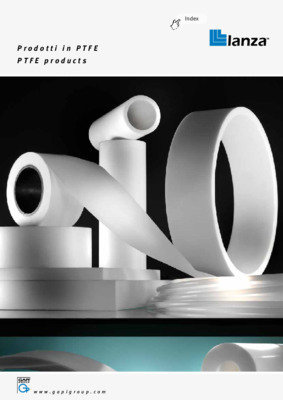

Catalogues

	PTFE - Granular
	PTFE - Paste

Product Data Sheets

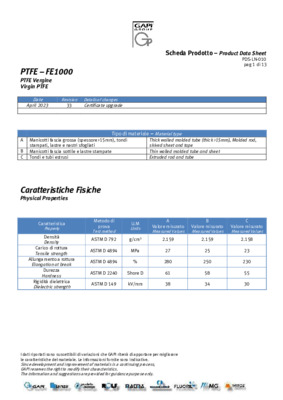

	Virgin PTFE

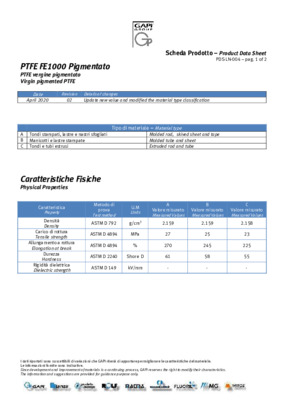

	Virgin PTFE - Blue Pigment

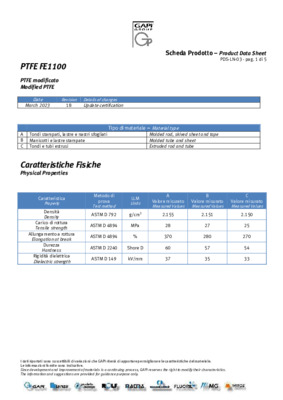

	Virgin Modified PTFE

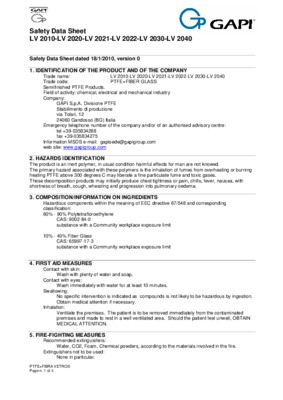

	Glass Filled 25% PTFE
	Glass Filled 15% PTFE

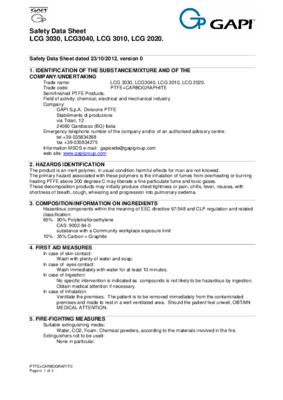

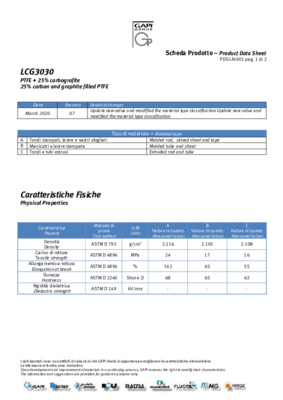

	Carbon Filled 25%
	Glass Filled 15% Mos2 3%

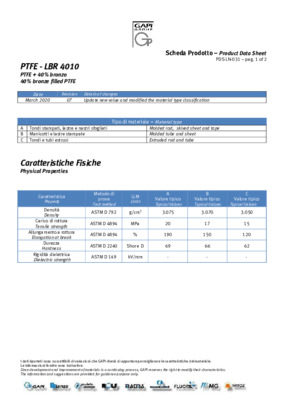

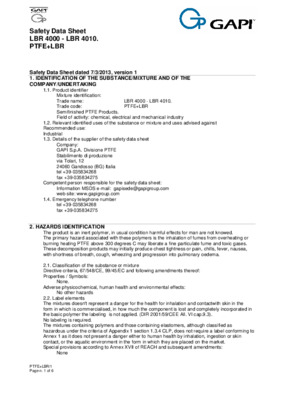

	Bronze 40%

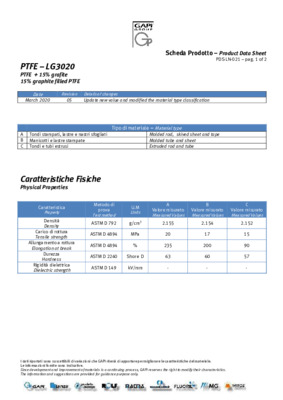

	Graphite 15%
	Virgin Paste

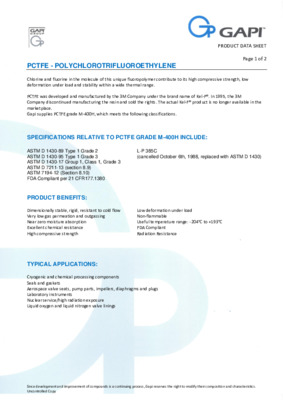

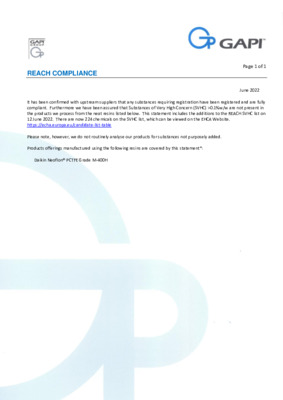

	PCTFE
	Bearing Tape - Brown

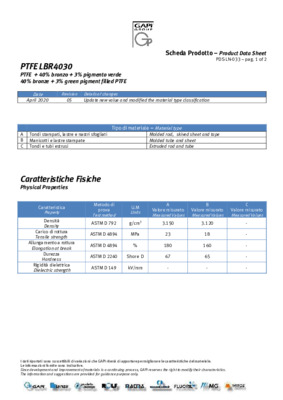

	Bearing Tape - Green
