BWS

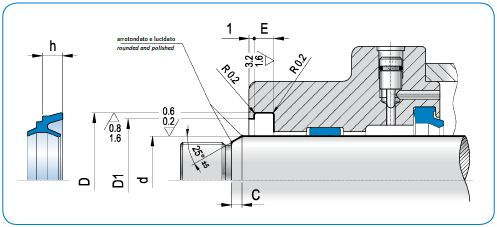

Diagram - BWS Type Bi-Directional Wiper + Step
The BWS wiper combines an asymetirc seal profile with a wiper.

On the sealing lip the BWS has a radius allwowing greater smoothness and on the static side the reduced size step facilitates installation, especially for small diameters.

The scraping part has a very thin lip so as not to influence the stick-slip effect in the cylinder movement.

The standard Compound is Polyurethane 90 Shore A (B0), but is also available in Polyurethane 85 Shore A (A0)

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
