ESA

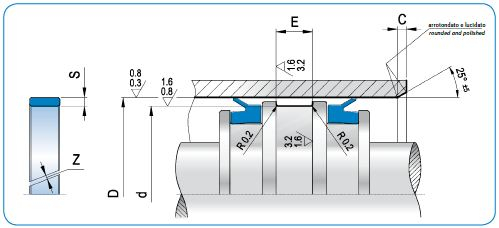

Diagram - ESA Type Rod Guide Ring
The ESA type rod guide ring is used to avoid direct contact between cylinder head and rod, and between the piston and sleeve.

The guide rings are in moulded, non-abraisive, self-lubricating material, especially developed to improve the linear sliding.

The profile presents chamfers on both sides for easier installation of rod and piston.

The standard compound is a non abrasive modified Polyacetalic resin with additives the improves movement (R3)

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
