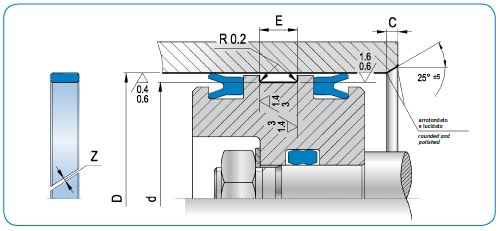

Diagram - HES Type External Wear Ring
The HES wear rings have been developed in order to keep all parts of the cylinder aligned ( the rod with the head, the piston with the bore).

They play an important role as they help the rod seal, the wiper and the piston seal work without misalignments and at the same time they prevent any contact between the metal parts, The material, which has a very low friction factor, does not cause load losses, (linearity)

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Materials available can be found in our Classification of Material Tables. (These are referenced by the "R?" code)

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
