PSP

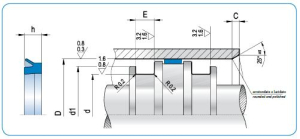

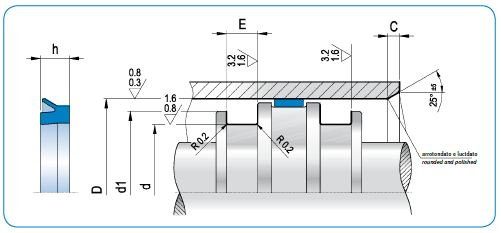

Diagram - PSP Type Piston Seal for Pneumatics
The PSP Piston seal has been designed for single and double action pneumatic cylinders.

The deep groove between the dynamic and the static lip, together with back-to-back lips radius enhances seal sliding even where there is a lack of environmental lubricaton.

The reduced dimensions, together with the high flexibility of the material facilitate istallation in closed groves.

The standard material is polyurethane 90 Shore A (B0), alternatively 85 Shore A (A0). This seal is also available in NBR Nitrile70 (PSP/N).

For further details, including assembly instructions, and a full list which includes other sizes available please download our Artic Catalogue.

Stock Code Description Inside Diam External Diam Height
Gapi Code Filter by Inside/External Diam / Height
